Solar LED Street Light All in One
Solar panel: 18V 120W high-efficiency monocrystalline silicon
Battery capacity: 12.8V60AH lithium iron phosphate battery
Luminous flux: 11000-12313LM
Installation height: 9-10m
Working hours: 6-8 rainy days
Charging time: ≥7H
Working temperature: -30℃~60℃
Certification: CE.ROHS etc.
Waterproof Grade: IP65
Controller working mode: Light control+ Infrared induction+ Time control
- Hurtig levering
- Kvalitetssikring
- 24/7 kundeservice
Produkt introduktion
Products Description
Solar LED Street Light All in One, simple design, and easy to install. High-grade one-piece die-cast aluminum alloy housing ensures IP65 waterproof grade so that both battery and Solar LED Street Light All in One are well protected against water. In addition, the new design of strong and powerful lamp arms is more durable in the storm.
Street Light uses solar power to store electricity in lithium batteries during the day and supplies the electricity from the lithium batteries to LED lights at night. The all-in-one solar light can light for 12 hours at night, and support on rainy and snowy days. It can provide brightness for 6-8 days on rainy days.
The new light source module design improves the brightness. It supports a time-based brightness setting, effectively prolonging the lifetime of LED chips.
LED Chip
Solar Panel
Micro-controller
Built-in battery
30W-300W All-in-one LED Solar Street Light
Application: This product is mostly used for the lighting of large roads, highways, streets, etc.
Light control sensor
Time-by-time brightness setting
Radar sensor, Motion sensor
Fast Shipping, Long Warranty
Super bright and efficient 3030 LED chips
New optical lens, 6 optical refraction process, transmittance up to 98%. Super light source with 100,000 hours of lighting lifetime, using high-quality Philips LED chips. The luminous efficiency can reach up to 160LM/W.
High-efficiency Monocrystalline Silicon Panel
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 20%, which is the highest among all types of solar cells. It is encapsulated with tempered glass and waterproof resin, which is durable and can last for more than 20 years. Mostly used for high-quality solar lights.
High-grade one-piece die-cast aluminum alloy housing
The high-precision die-cast aluminum shell allows the product to reach the waterproof level of IP65 and the windproof level of IK08. At the same time, it can effectively isolate the dust from the outside world. It has a series of advantages such as beautiful appearance, high quality, anti-corrosion, wear resistance, and high-temperature resistance.
Technical Specifications
| Product name | Solar LED Street Light All in One |
| Solar panel Max power | 18V/120W (high-efficiency imported monocrystalline silicon solar cell) |
| Solar panel Lifetime | 25 years |
| Battery Type | 12V/60AH lithium battery(LiFePo4 battery) |
| Led chip brand | Philips 3030 LED chip with high brightness |
| Lumen (LM) | 11000-12313LM |
| LED Lifetime | 50000 hours |
| Beam Angle | 120° |
| Charge time(by sun) | ≥7 hours (with enough strong shine) |
| Working time | 6-8 rainy days |
| Working TEMP( ℃ ) | -30~+60 |
| CCT (K) | 5000K-6500K |
| Lighting mode | Light control, infrared induction, and time control |
| Mounting height(m) | 7-10m |
| Space between light(m) | 25-30m |
| Lamps material | Aluminum alloy |
| Certificate | ISO / CE / ROHS / IP65 |
| Warranty period | 5 years |
| Product size | L1350*W450*H120mm |
Function Description
Light control sensor
Automatically turn off the light and charge during the day, and automatically turn on the light at dusk. Convenient and worry-free, no remote control is required.
Time-based brightness control
The lights can be set to be controlled by time intervals during production. Customers can make the lights have different brightness at different times according to the specific conditions of the place of use. For example, in the 12 hours when the lamp works, it can maintain 100% brightness for the first 5 hours; 70% brightness for the next 4 hours; 80% brightness for the last 3 hours, etc. In this way, during the time period when the flow of people and traffic is relatively small, the brightness of the lights can be automatically reduced to achieve the purpose of saving energy.
Motion sensor
This feature allows streetlights to have motion recognition. If this function is selected, the street lights can automatically turn on when it recognizes people or cars passing by. When people or vehicles leave, the lights will automatically turn off. But this function and the above-mentioned time-divided brightness control function cannot exist at the same time. Meanwhile, this function is generally not suitable for the lighting of large roads and main roads.
Features of Solar LED Street Light All in One:
1. 3030 High-Efficiency LED Chip, High Lumen.
2. LED light, solar panel, lithium battery, and controller, all in one compact design, Aluminium alloy housing.
3. 120°beam angle, suitable for various places.
4. 20W-300W are available, specially designed for engineering.
5. Sensors support light control, infrared sensing, and time control.
6. No wiring, 100% solar powered, easy to install and ship.
7. Rust-proof, dustproof, and waterproof IP65.
8. Quality of parts is the most important factor for the system, and we only choose trustworthy raw materials suppliers.
The application case
For large roads and main roads
This lamp is a high-quality, high-brightness integrated solar street lamp, so we generally use it for main road lighting.
For yards, parks and pathways, etc.
In the past trade, we also have customers use it for the lighting of paths. In this case, they usually choose a lower wattage.

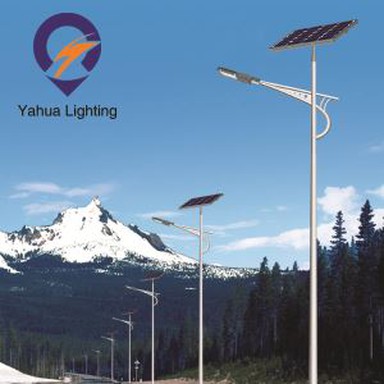

Project real shot:
Company show:
Yahua Lighting is one of the top solar lights, led lights, and solar product manufacturers in China. As the most reliable solar lights manufacturer and supplier in China, Yahua has a history of 20 years. With many years of industry experience, we can guarantee the production of high-quality lights. We are engaged in the manufacture of various lights products. In addition, we also provide customization and design services for our customers. We have gained the trust of our customers in many countries.
If you are looking for reliable solar lights and led lights suppliers, the bulk from us, and let us help you grow your business through our cooperation.
FAQ:
Q1: Could you provide OEM service?
A: Yes, we can provide OEM for you and customization.
Q2: Is there a MOQ and what are your shipping times?
A: 1 pc also can be delivered, we welcome sample testing. Mixed samples are also welcome. Samples are usually delivered in 3-5 days, and bulk orders are usually delivered in about 10 days.
Q3: Do you offer a guarantee for the products?
A: Yes, our products are backed by a 3-5 year warranty.
